High-Performance Hydrophone Battery

24AQ507-01

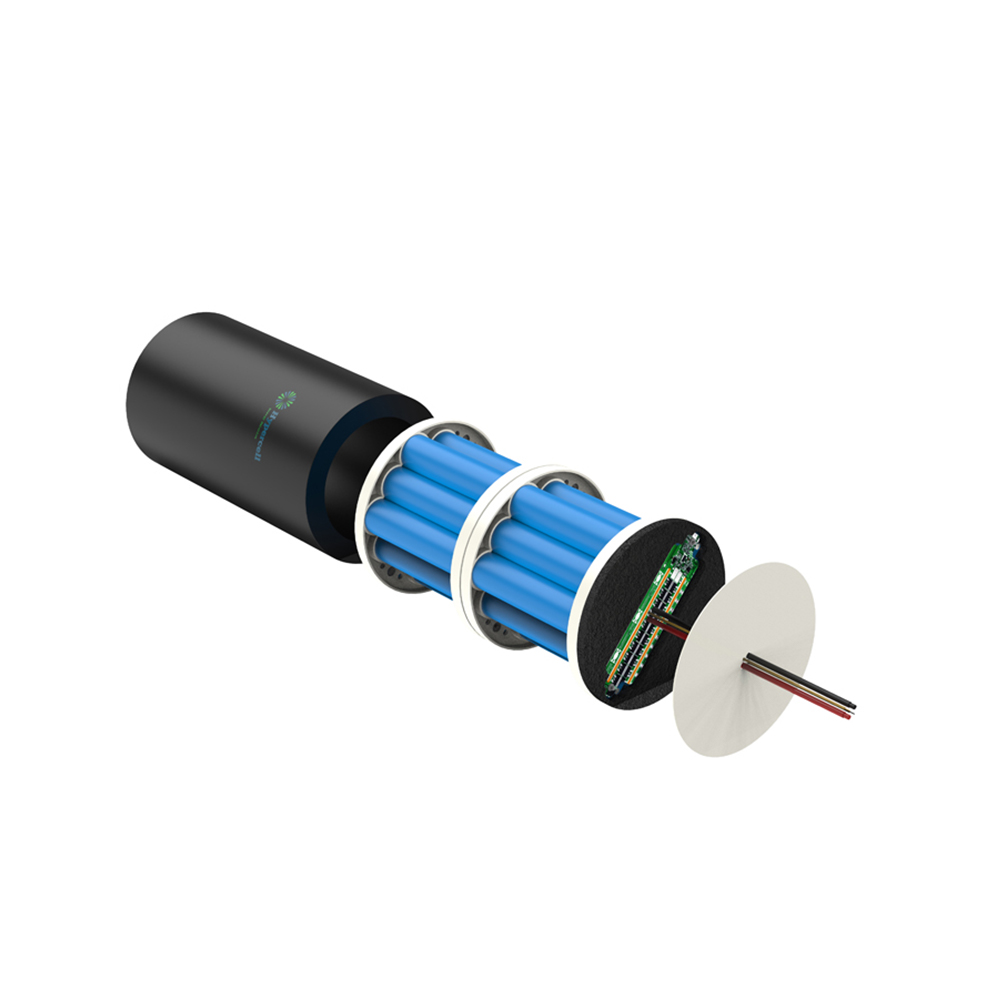

The 24AQ507-01 4S8P 12.8V 120Ah Li-ion Battery Pack is engineered for Hydrophone System requiring stable high-voltage output, long operating time, and reliable safety protection.
Built with high-quality IFR33140 LiFePO4 cylindrical cells and an advanced BMS system, this battery pack delivers powerful, consistent energy performance for demanding industrial environments.

Designed for Hydrophone Applications

This battery pack is optimized for:

Side Scan Sonar
Acoustic Beacon
Subsea Vehicle Acoustic Receivers
LiDAR
GNSS SurveyingSystems

It ensures stable power output during acceleration, load movement, and ultra-long standby time and highly accurate current sampling.

Get A Quote

Share This Products

LiFePO4& Customized Marine Electronics Battery Pack

12.8V/120Ah/1536Wh
Dual protection BMS integrated BQ7692003+BQ771824 solutions
CAN2.0 protocol with accurate SoC estimation
Ultra-long standby timeand highly accurate current sampling
Available for modules in parallel
Built in enclosure reaching waterproof IP68 and anti salt corrosion

Electrical Specifications

ITEM	SPECIFICATION
Type	IFR3140 Lithium iron phosphate
Configuration	4S8P
Nominal Voltage	12.8V
Nominal Capacity	120Ah
Nominal Energy	1536Wh
Max. Charging Voltage	14.6V
Fast Charge Current	0.2C@25℃
Discharge End of Voltage	10.0V (2.50V/cell)
Max. Continuous Discharge	5A @25℃
Operation Temp. Range	Charge 0℃~ 45 ℃ Discharge -20℃~ 60 ℃
Cycle Life	3000 cycles ≥80% Rated capacity (0.2C/0.2C)
Dimension	Ø169±1.0 x H300.0±3.0 mm
BMS	Dual protection including OV, UV, OC, OT, UT, SCC Prohibited 0V battery charging

OEM/ODM

Hypercell offers full customization for various marine battery projects:

Capacity adjustment
Voltage configuration
Connector type
Communication protocol
Housing material
Branding & labeling
Smart battery monitoring integration

Our engineering team works closely with clients to optimize battery size, weight and runtime.

Certifications & Compliance

IEC 62133, UL, PSE, KC, BSMI, BIS, 3C
CE, FCC, EMC
RoHS, (EU)2023/1542
UN38.3 Transportation Certified
DG packaging and export-ready documentation

Export-ready packaging and documentation available.
