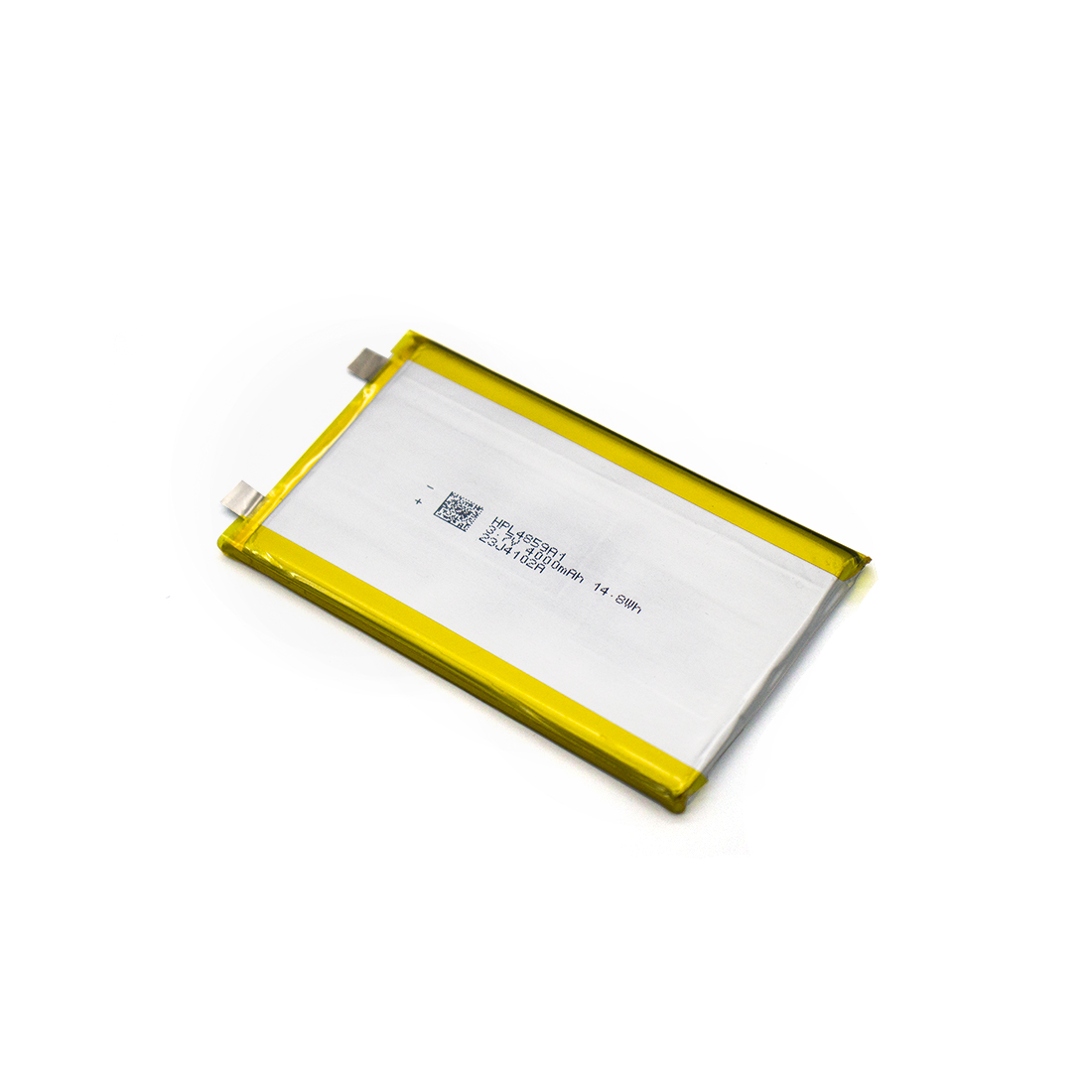

Low Temperature Li-Po Battery

HPL4859A1

Low temperature Li-Po battery refers to specifically designed battery to enhance the performance of electrical conductivity, decrease internal resistance and accelerate the chemical reaction for battery using in an extremely low environment temperature. It requires manufacturing with proprietary raw material formulations and innovative technology process. They are widely used in GPS, car trackers, high altitude zone radios, breakout indicators, aerospace, deep sea snorkeling, polar science, expeditions, cold zone rescue, disaster relief, winter coats, cold shoes.

Characteristics

Charge temperature: 0 ~ 45℃
Discharge temperature: -40℃~ 60℃
Low temperature discharge efficiency: up to 80% rated capacity (0.2C at -40℃)
Excellent life: ≥300 cycles & ≥80% initial capacity (0.5C at -30℃)

Get A Quote

Share This Products

Product List

Model	Nominal Capacity (mAh)	Nominal Voltage (V)	Max. Charge Voltage (V)	Max. Cont. Discharge (C Rate)	Charge Temperature Range	Discharge Temperature Range	Thickness (mm)	Width (mm)	Length (mm)
HPL573540VD	900	3.80	4.35	1.5C	0~45℃	-40~60℃	5.75	35.0	40.0
HPL514343D	950.00	3.70	4.20	1.5C	0~45℃	-40~60℃	5.1	43.0	43.0
HPL623247D	1000	3.70	4.20	1.5C	0~45℃	-40~60℃	6.20	32.6	47.0
HPL543742VD	1000	3.80	4.35	1.5C	0~45℃	-40~60℃	5.40	36.5	42.0
HPL643840VD	1150	3.8	4.35	1.5C	0~45℃	-40~60℃	6.40	38.0	40.0
HPL753747D	1200	3.70	4.20	1.5C	0~45℃	-40~60℃	7.50	36.8	47.0
HPL604540VD	1250	3.8	4.35	1.5C	0~45℃	-40~60℃	6.00	45.0	40.0
HPL704041VD	1320	3.80	4.35	1.5C	0~45℃	-40~60℃	7.00	40.0	41.0
HPL823249D	1400	3.70	4.20	1.5C	0~45℃	-40~60℃	8.2	32	49
HPL603562D	1450	3.70	4.20	1.5C	0~45℃	-40~60℃	5.9	36.0	42.0
HPL734540VD	1500	3.80	4.35	1.5C	0~45℃	-40~60℃	7.3	45	40
HPL993541VD	1600	3.80	4.35	1.5C	0~45℃	-40~60℃	9.95	35.0	41.0
HPL103540VD	1600	3.80	4.35	1.5C	0~45℃	-40~60℃	10.0	35.0	40.0
HPL653666D	1600	3.70	4.20	1.5C	0~45℃	-40~60℃	6.50	36.0	66.0
HPL724345VD	1600	3.80	4.35	1.5C	0~45℃	-40~60℃	7.20	43.0	45.0
HPL715049D	1900	3.70	4.20	1.5C	0~45℃	-40~60℃	7.1	50	49
HPL6524110VD	2000	3.80	4.35	1.5C	0~45℃	-40~60℃	6.50	24.0	110.0
HPL784062D	2000	3.70	4.20	1.5C	0~45℃	-40~60℃	4.20	40.0	62.0
HPL704555VD	2100	3.80	4.35	1.5C	0~45℃	-40~60℃	7	45	55
HPL733771D	2200	3.70	4.20	1.5C	0~45℃	-40~60℃	7.30	36.8	71.0
HPL505170VD	2200	3.80	4.35	1.5C	0~45℃	-40~60℃	5	51.0	70.0
HPL604087D	2700	3.70	4.20	1.5C	0~45℃	-40~60℃	6.00	40.5	87.0
HPL104346VD	2500	3.80	4.35	1.5C	0~45℃	-40~60℃	10	43	46
HPL505781VD	2800	3.80	4.35	1.5C	0~45℃	-40~60℃	5.00	57.0	81.0
HPL855750VD	2800	3.80	4.35	1.5C	0~45℃	-40~60℃	8.50	57.0	50.0
HPL654975VD	3000	3.80	4.35	1.5C	0~45℃	-40~60℃	6.4	49	74
HPL775656VD	3000	3.80	4.35	1.5C	0~45℃	-40~60℃	7.7	56	56
HPL476085VD	3000	3.80	4.35	1.5C	0~45℃	-40~60℃	4.70	59.5	85.0
HPL636267VD	3300	3.80	4.35	1.5C	0~45℃	-40~60℃	6.3	62	67
HPL934468VD	3600	3.80	4.35	1.5C	0~45℃	-40~60℃	9.3	44	68
HPL904469VD	3600	3.80	4.35	1.5C	0~45℃	-40~60℃	9.0	44.0	69.0
HPL115076D	3600	3.70	4.20	1.5C	0~45℃	-40~60℃	10.80	49.8	76.0
HPL785474VD	4200	3.80	4.35	1.5C	0~45℃	-40~60℃	7.80	54.5	74.5
HPL686088D	4400	3.70	4.20	1.5C	0~45℃	-40~60℃	6.80	59.8	88.0
HPL6060100VD	4800	3.80	4.35	1.5C	0~45℃	-40~60℃	6.0	60.0	100.0
HPL926173VD	5500	3.80	4.35	1.5C	0~45℃	-40~60℃	9.20	61.5	73.0
HPL6473112D	6700	3.70	4.20	1.5C	0~45℃	-40~60℃	6.35	73.0	112.0
HPL9553102VD	7000	3.80	4.35	1.5C	0~45℃	-40~60℃	9.5	43	102

Low Temperature Li-Po Battery

HPL4859A1
