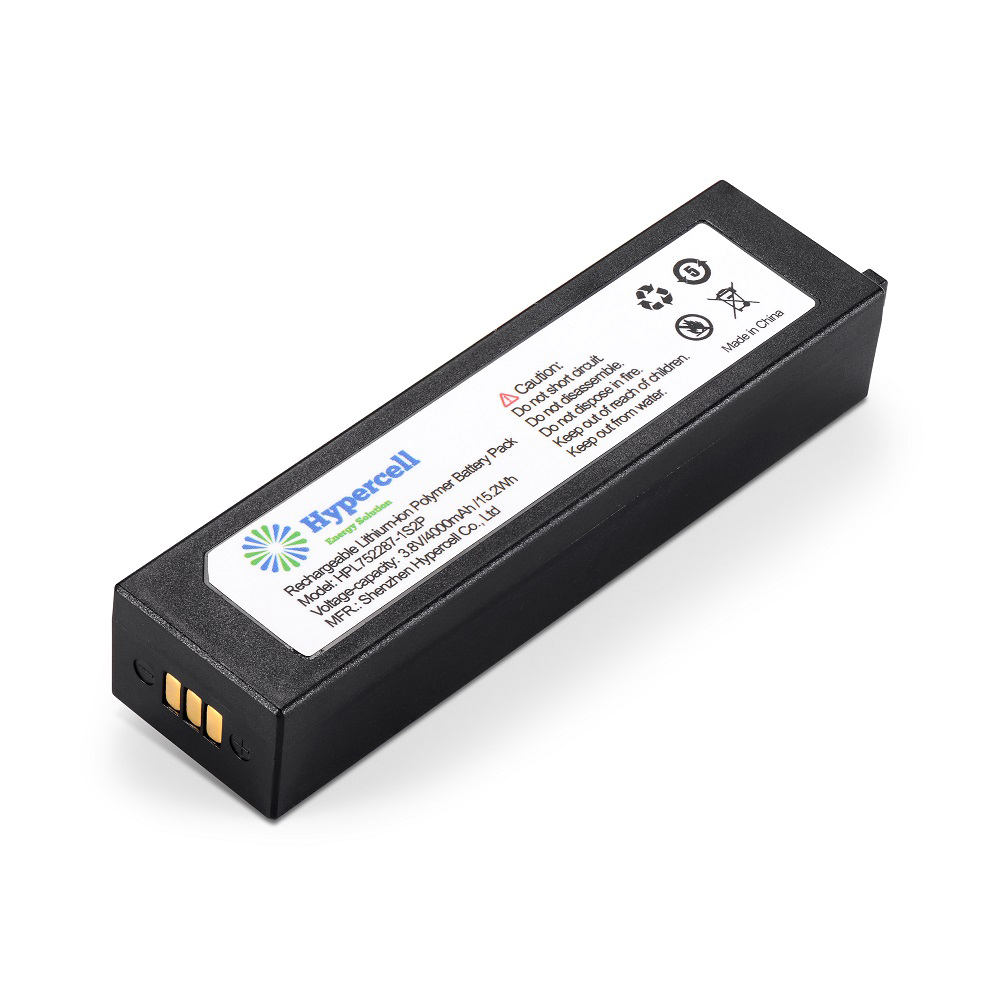

HPL752287-1S2P 3.8V 4000mAh
The HPL752287-1S2P 3.8V 4000mAh Li-PO Battery Pack is engineered for handheld terminals requiring stable high-voltage output, long operating time, and reliable safety protection. Built with high-quality HPL752287 Li-Polymer prismatic cells and an advanced BMS system, this battery pack delivers powerful, consistent energy performance for demanding industrial environments.
Designed for Handheld Terminals Applications
This battery pack is optimized for:
- Rugged Tablets
- Security Cameras
- Industrial PDA
- Biometric ID Tablets
- Portable Label Printer
It ensures stable power output during acceleration, load movement, and continuous industrial operation.
Share This Products
Li-PO & Custom IoTs Battery Pack
- 3.8V/4000mAh/18.72Wh
- 3.8V high voltage series Li-Polymer cells solutions
- BMS protection with import IC
- Plastic housing PC+ABS, UL94-V0& IP65
- Removable battery with golden finger
| ITEM | SPECIFICATION |
| Type | HPL752287 Li-Polymer |
| Configuration | 1S2P |
| Nominal Voltage | 3.8V |
| Nominal Capacity | 4000mAh |
| Nominal Energy | 18.72Wh |
| Max. Charging Voltage | 4.35V |
| Fast Charge Current | 1.0C@25℃ |
| Discharge End of Voltage | 3.0V (3.0V/cell) |
| Max. Continuous Discharge | 1.0C @25℃ |
| Operation Charge Temp. Range | Charge 0℃~ 45 ℃ |
| Operation Discharge Temp. Range | Discharge -20℃~ 60 ℃ |
| Cycle Life | 800 cycles ≥70% Rated capacity ( 0.5C/0.5C) |
| Enclosure | PC+ABS, UL94-V0& IP65 |
| Terminals | Golden Finger 3 Pin |
| Dimension | L 92.2x W 25.0 x H17.0 mm |
| NTC | 10KΩ, B=3435 |
| BMS | Dual protection including OV, UV, OC, SCC |
OEM/ODM
Hypercell offers full customization for various IoTs battery projects:
- Capacity adjustment
- Voltage configuration
- Connector type
- Communication protocol
- Housing material
- Branding & labeling
- Smart battery monitoring integration
Our engineering team works closely with clients to optimize battery size, weight and runtime.
Certifications & Compliance
- IEC 62133, UL, PSE, KC, BSMI, BIS, 3C
- CE, FCC, EMC
- RoHS, (EU)2023/1542
- UN38.3 Transportation Certified
- DG packaging and export-ready documentation
Export-ready packaging and documentation available.
