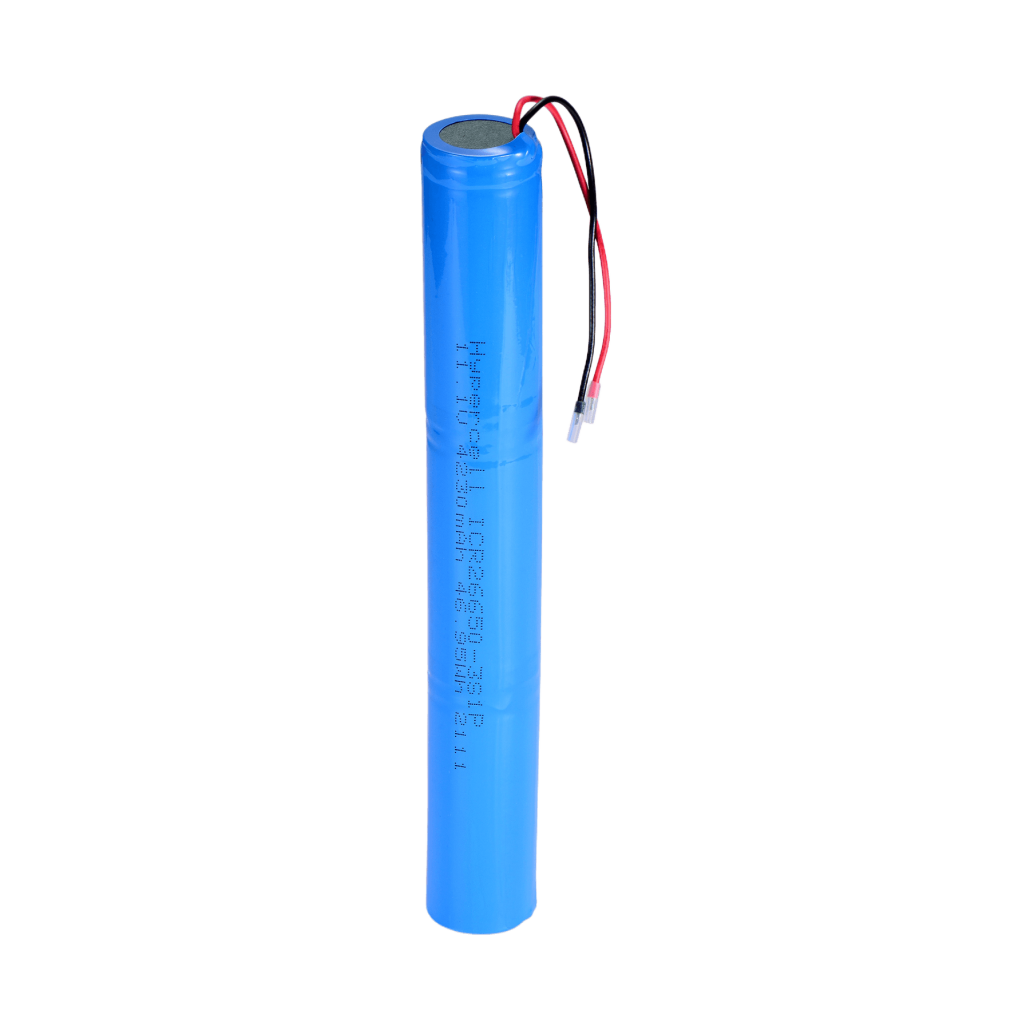

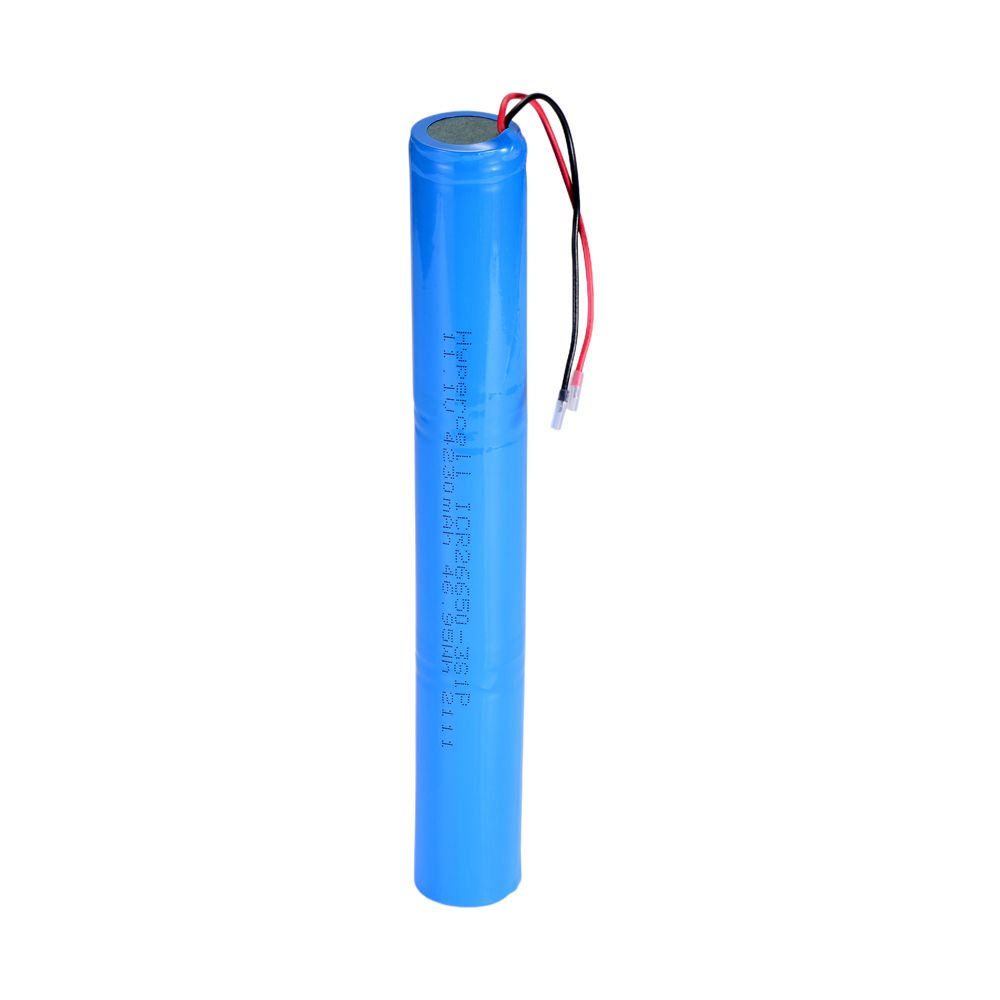

ICR18650-3S1P 11.1V 4230mAh
The ICR18650-3S1P 11.1V 4230mAh Li-ion Battery Pack is engineered for smart home and electric curtain requiring stable high-voltage output, long operating time, and reliable safety protection.
Built with high-quality 26650 cylindrical cells and an advanced BMS system, this battery pack delivers powerful, consistent energy performance for demanding industrial environments.
Designed for Smart Home Applications
This battery pack is optimized for:
- Electric Curtains
- Home Automation
- Intrusion Systems
- Automation Gates
- IP CCTVSystems
It ensures stable power output during acceleration, load movement, and continuous industrial operation.
Share This Products
Li-ion & Custom IoTs Battery Pack
- 11.1V/4230mAh/46.95Wh
- BMS protection with Ablic IC solution
- Available capacity 5000mAh, 5500mAh
| ITEM | SPECIFICATION |
| Type | ICR21700 Lithium-ion |
| Configuration | 3S1P |
| Nominal Voltage | 11.1V |
| Nominal Capacity | 4230mAh |
| Nominal Energy | 46.95Wh |
| Max. Charging Voltage | 12.6V |
| Fast Charge Current | 1.0C@25℃ |
| Discharge End of Voltage | 8.4V (2.80V/cell) |
| Max. Continuous Discharge | 1.0C @25℃ |
| Operation Temp. Range | Charge 0℃~ 45 ℃ Discharge -20℃~ 60 ℃ |
| Cycle Life | 500 cycles ≥70% Rated capacity ( 0.5C/0.5C) |
| Enclosure | PVC shrinking |
| Connector | Leading Wires |
| Dimension | Ø27 x H200 mm |
| NTC | / |
| BMS | Protection including OV, UV, OC, SCC |
OEM/ODM
Hypercell offers full customization for various smart home battery projects:
- Capacity adjustment
- Voltage configuration
- Connector type
- Communication protocol
- Housing material
- Branding & labeling
- Smart battery monitoring integration
Our engineering team works closely with clients to optimize battery size, weight and runtime.
Certifications & Compliance
- IEC 62133, UL, PSE, KC, BSMI, BIS, 3C
- CE, FCC, EMC
- RoHS, (EU)2023/1542
- UN38.3 Transportation Certified
- DG packaging and export-ready documentation
Export-ready packaging and documentation available.
