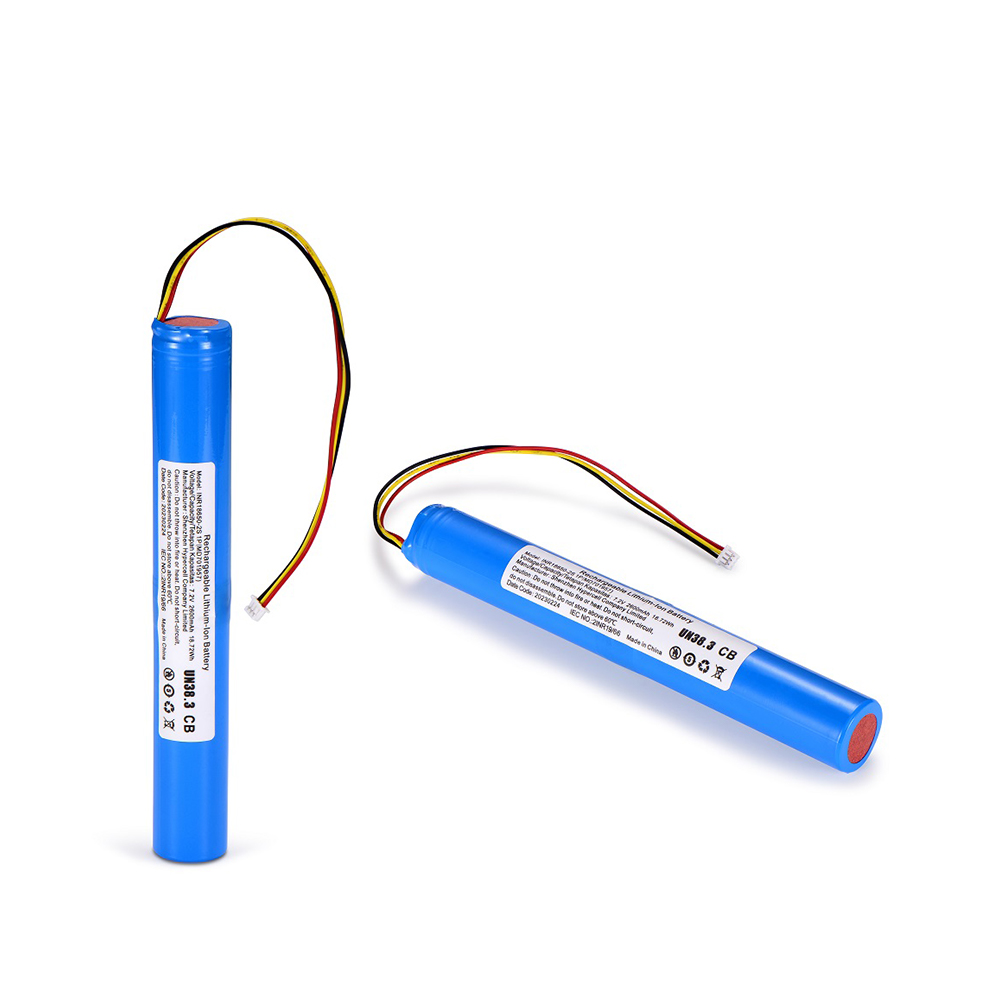

INR18650-2S1P 7.2V 2600mAh
The INR18650-2S1P 7.2V 2600mAh Li-ion Battery Pack is engineered for satellite terminal requiring stable high-voltage output, long operating time, and reliable safety protection.
Built with high-quality 18650 cylindrical cells and an advanced BMS system, this battery pack delivers powerful, consistent energy performance for demanding industrial environments.
Designed for Satellite Terminal Applications
This battery pack is optimized for:
- Tracking Device
- Data Logger
- Spectrum Analyzer
- Leak detector
- RFID Reader
It ensures stable power output during acceleration, load movement, and continuous industrial operation.
Share This Products
Li-ion & Custom Battery Pack
- 7.2V/2600mAh/18.72Wh
- Long cycle life: 1000cycles ≥80% Rated capacity ( 0.5C/0.5C)
- BMS protection with NTC (10KΩ, B=3435)
- Available capacity: 2900mAh and 3400mAh
| ITEM | SPECIFICATION |
| Type | INR18650 Lithium-ion |
| Configuration | 2S1P |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 2600mAh |
| Nominal Energy | 18.72Wh |
| Max. Charging Voltage | 8.4V |
| Fast Charge Current | 1.0C@25℃ |
| Discharge End of Voltage | 5.6V (2.80V/cell) |
| Max. Continuous Discharge | 2.0C @25℃ |
| Operation Temp. Range | Charge 0℃~ 50 ℃ |
| Discharge -20℃~ 80 ℃ | |
| Cycle Life | 1000 cycles ≥80% Rated capacity ( 0.5C/0.5C) |
| Enclosure | PVC shrinking |
| Connector | Molex connector |
| Dimension | Ø19 x H140 mm |
| NTC | 10KΩ, B=3435 |
| BMS | Dual protection including OV, UV, OC, SCC |
OEM/ODM
Hypercell offers full customization for various industrial battery projects:
- Capacity adjustment
- Voltage configuration
- Connector type
- Communication protocol
- Housing material
- Branding & labeling
- Smart battery monitoring integration
Our engineering team works closely with clients to optimize battery size, weight and runtime.
Certifications & Compliance
- IEC 62133, UL, PSE, KC, BSMI, BIS, 3C
- CE, FCC, EMC
- RoHS, (EU)2023/1542
- UN38.3 Transportation Certified
- DG packaging and export-ready documentation
Export-ready packaging and documentation available.
