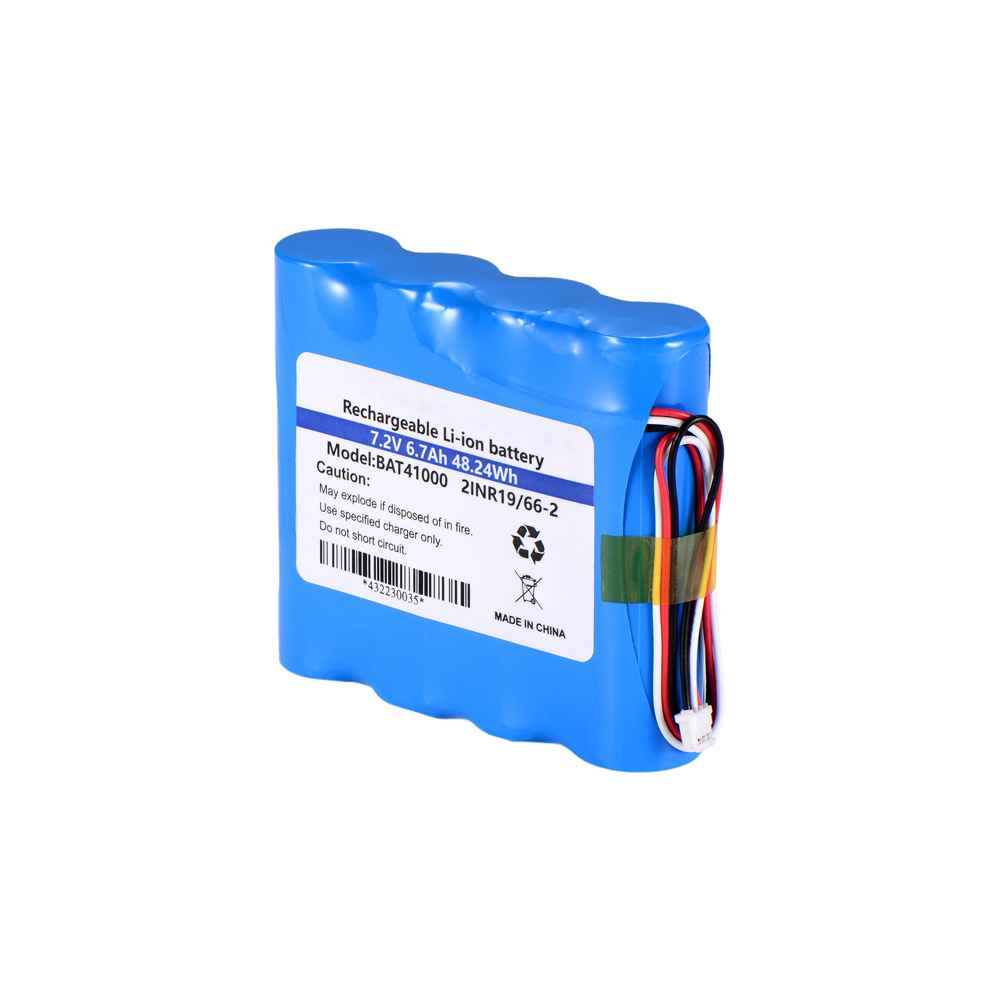

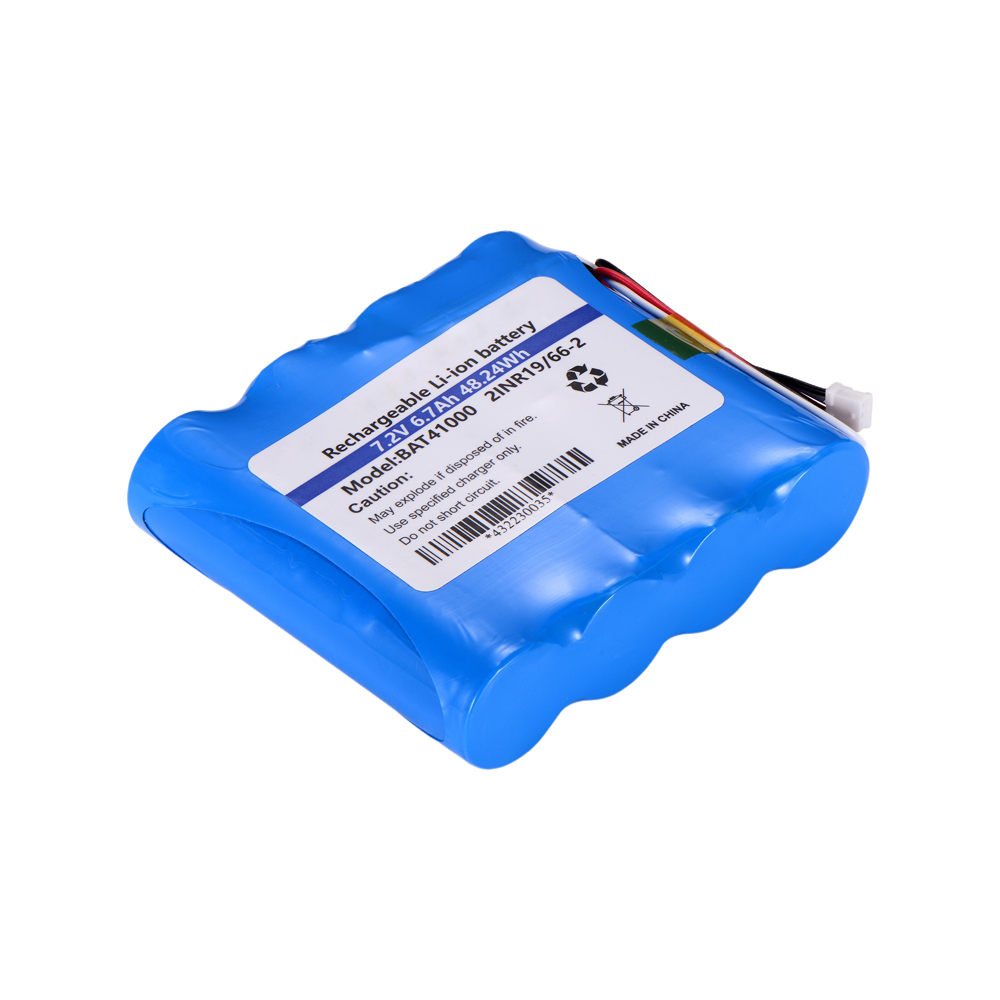

High-Performance Ultrasonic Detectors Pack

INR18650-2S2P 7.2V 6700mAh

The INR18650-2S2P 7.2V 6700mAh Li-ion Battery Pack is engineered for Ultrasonic Detectors requiring stable high-voltage output, long operating time, and reliable safety protection.

Built with high-quality 18650 cylindrical cells and an advanced BMS system, this battery pack delivers powerful, consistent energy performance for demanding industrial environments.

Designed for GIS & Infrastructure Measurement Applications

This battery pack is optimized for:

Ultrasonic Flaw Detectors
Handheld GIS
3D Mapping Devices
Video Scopes
Rebar Detectors
Vibration Sensors

It ensures stable power output during acceleration, load movement, and continuous industrial operation.

Get A Quote

Share This Products

Li-ion and Customized Infrastructure Detectors Battery Pack

7.2V/6700mAh/48.24Wh
Long cycle life: 500cycles ≥80% Rated capacity ( 0.5C/0.5C)
Dual BMS protection with Ablic IC + PTC + NTC
Available for other cell’s capacity : 2900mAh, 3200mAh and 3500mAh

Electrical Specifications

ITEM	SPECIFICATION
Type	INR18650 Lithium-ion
Configuration	2S2P
Nominal Voltage	7.2V
Nominal Capacity	6700mAh
Nominal Energy	48.24Wh
Max. Charging Voltage	8.4V
Fast Charge Current	0.5C@25℃
Discharge End of Voltage	5.0V (2.5V/cell)
Max. Continuous Discharge	0.5C @25℃
Operation Temp. Range	Charge 0℃~ 50 ℃
	Discharge -20℃~ 80 ℃
Cycle Life	500 cycles ≥80% Rated capacity ( 0.5C/0.5C)
Enclosure	PVC shrinking
Connector	Molex connector
Dimension	L75.0 x W20.5 x H67.5 mm
NTC	10KΩ, B=3435
BMS	Dual protection including OV, UV, OC, SCC

OEM/ODM

Hypercell offers full customization for various Infrastructure Measurement battery projects:

Capacity adjustment
Voltage configuration
Connector type
Communication protocol
Housing material
Branding & labeling
Smart battery monitoring integration

Our engineering team works closely with clients to optimize battery size, weight and runtime.

Certifications & Compliance

IEC 62133, UL, PSE, KC, BSMI, BIS, 3C
CE, FCC, EMC
RoHS, (EU)2023/1542
UN38.3 Transportation Certified
DG packaging and export-ready documentation

Export-ready packaging and documentation available.
