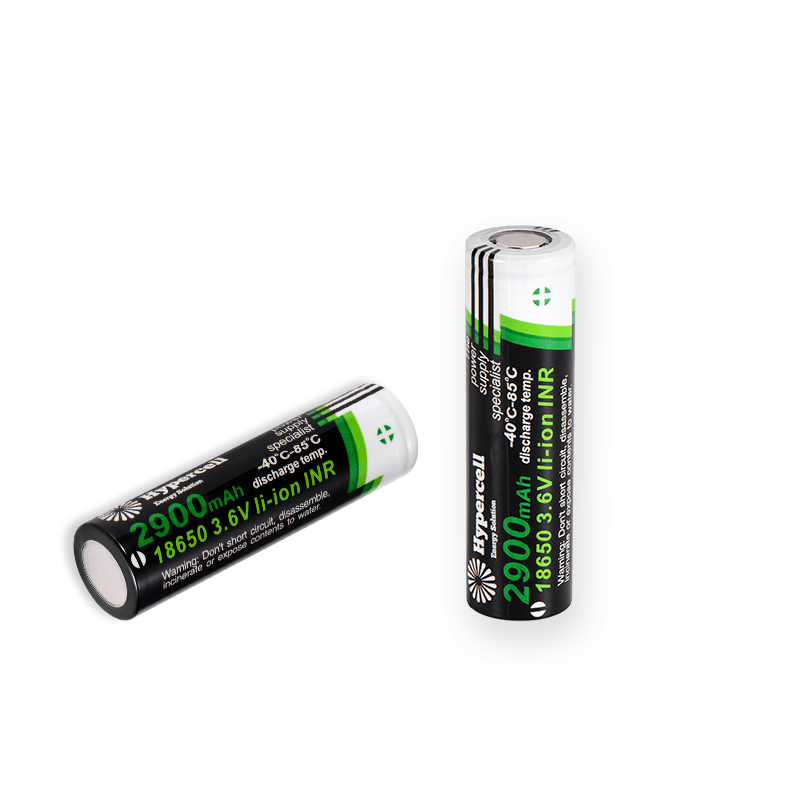

INR18650S
Li-ion cylindrical wide temperature cells are designed for devices using in extreme low or extreme high temperature application scenarios, such as environment monitoring, infrastructure monitoring, rescue medical device, vehicle GPS tracking, smart logistic monitoring, intelligent traffic monitoring, remote sensor data transmission, maritime signal system, extreme climate monitoring, etc. They not only require battery can can charge and discharge at high temperature or low temperature, but also require battery long service time and long calender life.
Key Features
- Wide operating temperature range:
— Charge temperature: -20℃ ~ 60℃
— Discharge temperature: -40℃ ~ 85℃
- High energy density
- Consistent cells performance
- Strictly comply with application guiding by manufacturer
- Compliance UL1642, IEC62133, FDA, ISO13485
Share This Products
Product List
| Model | Typical Capacity(mAh) | Nominal Voltage(V) | Max.Charge Voltage(V) | Discharge Cut-off Voltage(V) | Max.Charge Current(C Rate) | Max.Cont. Discharge(C Rate) | Internal Resistance(mΩ) | Cycle Life | Charge Temp. Range | Discharge Temp. Range | Diax Height(mm) | Weight(g) |
| INR18650T | 2000 | 3.6 | 4.2 | 2.75 | 1.0C | 5.0C | ≤40 | ≥500 | -20~60℃ | -40~85℃ | 18 | 42.0 |
| INR18650S | 2900 | 3.6 | 4.2 | 2.5 | 1.0C | 3.0C | ≤28 | ≥500 | -20~60℃ | -40~85℃ | 18 | 44.0 |
| INR18650-34LP | 3350 | 3.6 | 4.2 | 2.5 | 0.5C | 2.0C | ≤45 | ≥500 | -20~60℃ | -40~85℃ | 18 | 49.0 |
